Resin hammer capsule in India- 5 min Bond

Providing convenient and economical anchoring solutions has always been at the heart of Elantor Solutions. Keeping this in mind, we are proud to introduce our very own, Resin hammer capsules in India – 5 min Bond.

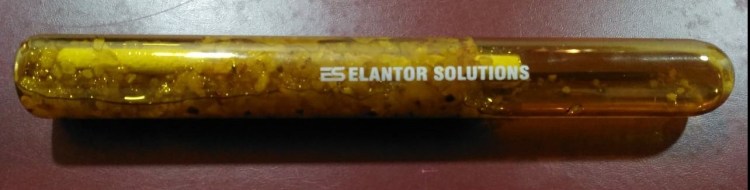

Resin hammer capsule
Resin hammer capsule

Resin capsules are ideal for applications where instant cure is required. It’s easy and non-messy installation coupled with an affordable price point further makes it an attractive option compared to regular cartridge systems.

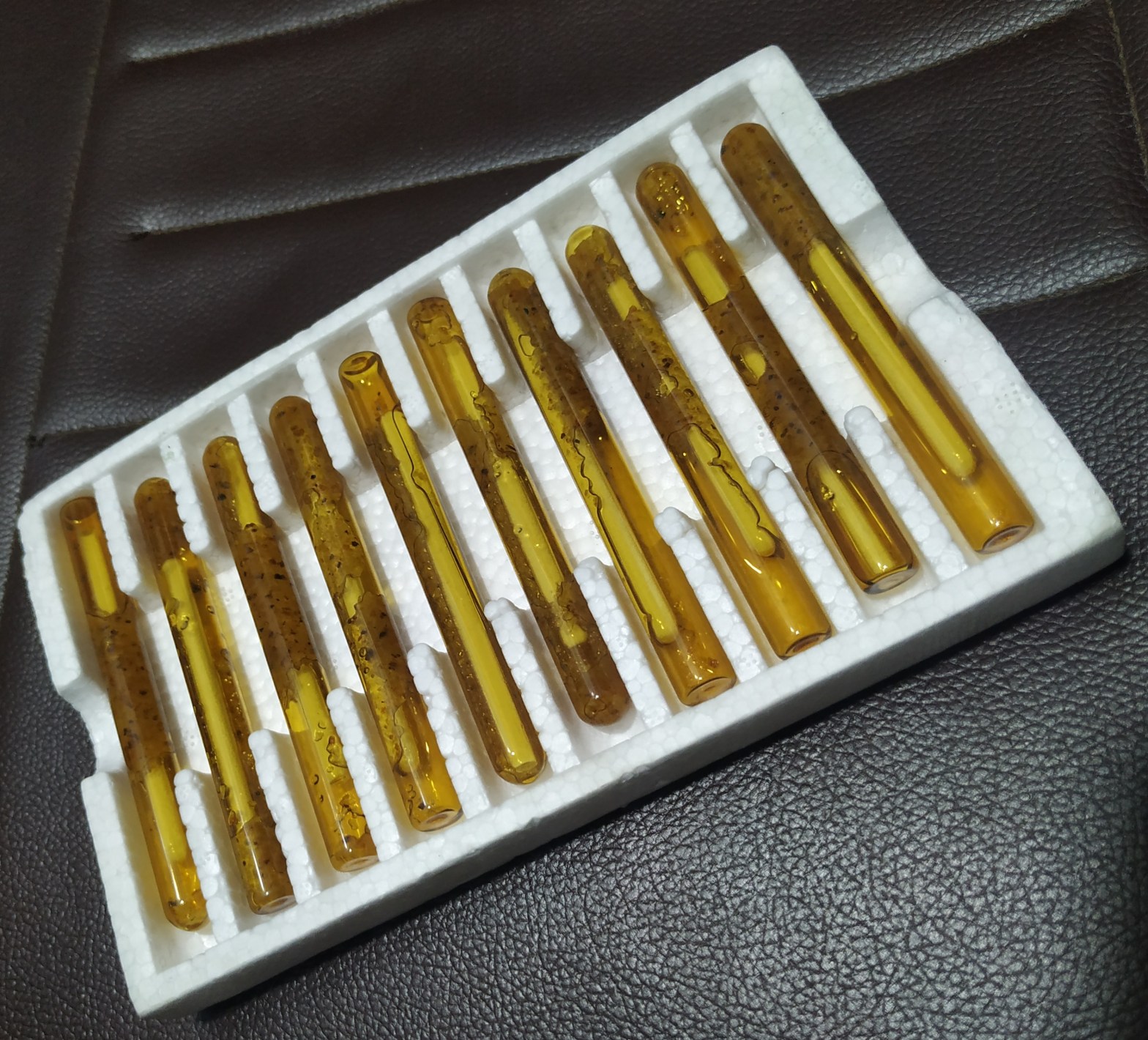

Resin capsule in India - Affordable & quick installation

Key Features –

  • Easy & quick installation
  • Fastest cure time
  • Preportioned components eliminate manual mixing
  • Zero wastage
  • Cost-effective
  • Vibration & corrosion resistant
  • Works in dry, damp & wet holes
  • Styrene free – no odour

Timeline –

530 mins

Applications of Resin Capsule –

  • Steelwork constructions
  • Machine Installation
  • Tunnels
  • Guard rails
  • Steel brackets
  • Crash guard
  • Noise barriers
  • Consoles
  • Pipelines
  • Gratings
  • Masts
  • Façades
  • Staircases

Installation procedure –

hammer capsule.png

Pre-measured portions of Resin and hardener are stored in two different compartments. When a Bolt/ Rebar is hammered, the tube gets crushed and thus activates the mortar to form a homogeneous mixture that cures within an hour. When one rotates the bolt/ rebar, the chemical mortar adheres to the entire surface of the hole and the bolt thereby creating a strong between the two.

5 min Bond Resin capsule neither requires chisel end bolts nor any special installation equipment/ adapters for rotating action.

It can be directly used with standard bolts/ rebars by hammering and crushing the test tube, rotating the bolt/ rebar manually all along.
