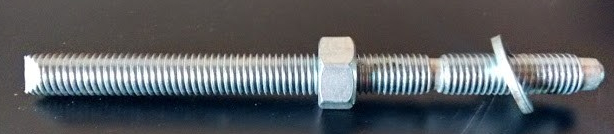

5.8 Grade Chisel ended Chemical Anchors
(Also known as Threaded Bolts/ Threaded Rod / Stud)

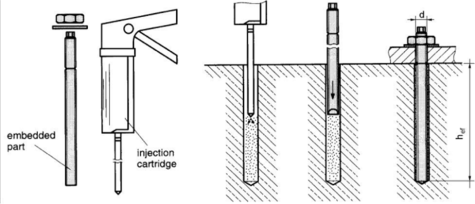

How to install a Chemical Anchor
The entire fixing system consists of using anchor with an injection mortar consisting Resin & Hardener for quick settings. When the resin cures, it results in an incredibly strong bond between anchor and concrete.
Features of Chemical Anchor
- All our Chemical Anchors are provided with an impact section so that the threads are not damaged during installation.
- They are assembled along with a Standard nut and washer. On special requests, we also supply Oversize washers.
- We also provide markings for embedment depths.
- Maintains superior Edge and Axial distance.
- Suitable for a wide range of applications because of relatively high tensile strength.
- How are our anchors different than those of others? Read this.
Applications of Chemical Anchors
When used along with our Chemical MortarsChemical Mortars , Chemical anchors can be used in myriad applications.
However, if you are planning to use Chemical Anchors in a moist environment, then you should go for Hot Dip Galvanized Chemical Anchors.
Fastenings can be fixed in cracked and uncracked concrete made with Mr. Bond for various anchoring applications (e.g. bracing of reinforced concrete buildings) and structural steel connections (e.g. steel columns, beams).
Technical Data Specifications
Chemical Anchor Design Specifications
Threaded bar M12 Pull Out Test Certificate
